Spectroscopy is an essential analytical tool that examines the interaction between electromagnetic radiation and matter. It enables chemists to identify substances, determine molecular structures, and measure concentrations. This guide delves deep into spectroscopy concepts and the electromagnetic spectrum, equipping you with essential knowledge for job preparation in fields like research, quality control, and chemical analysis.

Spectroscopy and the Electromagnetic Spectrum: A Job Preparation Guide

Understanding the Electromagnetic Spectrum

The electromagnetic (EM) spectrum covers all types of electromagnetic radiation, organized by wavelength and frequency. Each region plays a crucial role in spectroscopy:

Region	Wavelength Range	Applications in Spectroscopy
Gamma Rays	Less than 0.01 nm	Nuclear research, cancer treatment
X-rays	0.01 – 10 nm	X-ray crystallography, medical imaging
Ultraviolet (UV)	10 – 400 nm	UV-Vis spectroscopy, protein/DNA analysis
Visible Light	400 – 700 nm	Colour analysis, environmental testing
Infrared (IR)	700 nm – 1 mm	Molecular vibration studies, functional group ID
Microwaves	1 mm – 1 m	Rotational spectroscopy, microwave communications
Radio Waves	Greater than 1 m	NMR spectroscopy, telecommunications

Detailed Breakdown of Key Spectral Regions

Ultraviolet (UV) Light (10 – 400 nm)

UV light detects electronic transitions, especially in conjugated systems and biomolecules.

• UVC (100–280 nm)
  • Applications: Germicidal lamps, sterilization.
  • Note: Completely absorbed by the Earth’s atmosphere.
• UVB (280–320 nm)
  • Applications: Vitamin D synthesis, skin analysis.
  • Note: Causes sunburn; partially blocked by the ozone layer.
• UVA (320–400 nm)
  • Applications: UV-Vis spectroscopy, forensic analysis.
  • Note: Penetrates deeper into the skin and is used in tanning devices.

Visible Light (400 – 700 nm)

This range corresponds to the human eye's perception of colour. It’s extensively used in colour analysis and concentration determination.

• Key Wavelengths:
  • Violet: 400–450 nm
  • Indigo: 445–450 nm
  • Blue: 450–495 nm
  • Green: 495–570 nm
  • Yellow: 570–590 nm
  • Orange: 590–620 nm
  • Red: 620–700 nm

Example Application: In food industries, visible spectroscopy determines the concentration of natural pigments.

Infrared (IR) Radiation (700 nm – 1 mm)

IR spectroscopy analyzes molecular vibrations, identifying functional groups in organic compounds.

• Near-IR (700–2500 nm): Analyzes overtones and combination bands.
• Mid-IR (2500–25,000 nm): Most common in organic analysis.
• Far-IR (25,000 nm – 1 mm): Studies low-frequency vibrations and lattice structures.

Example: Mid-IR spectra help identify functional groups like -OH and C=O.

Key Spectroscopy Techniques with Diagrams and Applications

1. UV-Vis Spectroscopy

• Principle: Measures the absorption of UV or visible light.
• Applications: Determining the concentration of coloured or UV-active compounds.
• Example: Analyzing the purity of DNA or proteins.

UV-Vis Spectrum

The UV-Vis Spectrum displays a Gaussian-shaped absorbance peak around 350 nm, typical for electronic transitions in molecules with conjugated systems.

2. Infrared (IR) Spectroscopy

• Principle: Detects molecular vibrations.
• Applications: Identifying functional groups in organic molecules.
• Example: Detecting carbonyl groups (C=O) in ketones and aldehydes.


IR Spectrum

Here, the IR Spectrum shows characteristic absorbance peaks at 1000, 1700, and 3300 cm${}^{-1}$, representing common vibrational modes for functional groups like C-H stretching, C=O stretching, and O-H stretching.

3. Nuclear Magnetic Resonance (NMR) Spectroscopy

• Principle: Analyzes how nuclei interact with magnetic fields and radio waves.
• Applications: Determining the structure of organic compounds.
• Example: Identifying hydrogen environments in a molecule.

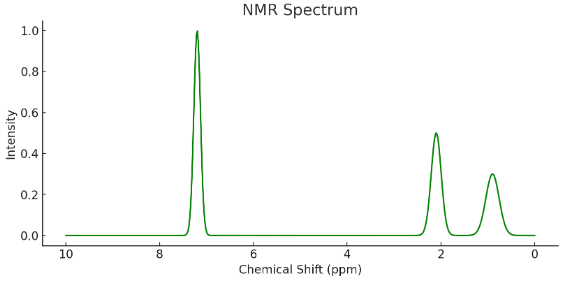

NMR Spectrum

This NMR Spectrum depicts peaks at 7.2 ppm (aromatic protons), 2.1 ppm (alkyl protons near electronegative groups), and 0.9 ppm (methyl protons), with intensities approximating relative ratios.

Spectral Diagrams and Interpretation

Visualizing spectra is essential for interpretation. Important spectral features include:

• UV-Vis Spectrum: Shows absorbance peaks corresponding to electronic transitions.
• IR Spectrum: Peaks indicate different molecular vibrations (e.g., O-H stretch, C-H bend).
• NMR Spectrum: Chemical shifts reveal the chemical environment of atoms.

Difference Between Key Spectroscopy Techniques

Here's a comparative table summarizing key aspects of UV-Vis, IR, and NMR spectroscopy:

Aspect	UV-Vis Spectroscopy	IR Spectroscopy	NMR Spectroscopy
Principle	Absorption of UV-Vis light by molecules causing electronic transitions.	Absorption of IR radiation causing vibrational transitions in bonds.	Interaction of nuclear spins with a magnetic field and RF radiation.
X-axis	Wavelength (nm) or Frequency (Hz)	Wavenumber (cm$^{-1}$)	Chemical Shift (ppm)
Y-axis	Absorbance or Transmittance	Absorbance or Transmittance	Intensity or Integration
Region of Spectrum	UV: 200-400 nm, Visible: 400-800 nm	IR: 400-4000 cm$^{-1}$	$^1H$: 0-10 ppm, $^{13}C$: 0-200 ppm
Key Features	Broad peaks, intensity depends on chromophores.	Sharp peaks correspond to vibrational modes of functional groups.	Peaks reflect environments of nuclei; splitting and integration provide structural data.
Sample Types	Organic/inorganic molecules with chromophores or metal complexes.	Molecules with polar covalent bonds or specific functional groups.	Compounds with NMR-active nuclei (e.g., $^1H$, $^{13}C$).
Applications	Quantitative analysis, reaction monitoring, conjugated system studies.	Functional group identification, polymer studies, environmental analysis.	Structural elucidation, conformational analysis, and reaction mechanism studies.
Example	Absorption at 450 nm in β-carotene (conjugated systems).	Peak at 1700 cm$^{-1}$ for C=O (carbonyl group).	Peak at 7.2 ppm for aromatic protons in benzene.

Why Spectroscopy Knowledge is Crucial for Job Candidates

Understanding spectroscopy equips candidates to:

• Interpret Spectra: Identify substances or structures accurately.
• Apply Techniques: Select the appropriate spectroscopy method based on the sample and objective.
• Solve Real-World Problems: Analyze complex data sets and develop solutions in research, pharmaceuticals, and quality control.

Key Takeaways

• Master Basic Principles: Understand the electromagnetic spectrum and how different spectroscopy techniques apply to each region.
• Practice Interpretation: Work with sample spectra to develop your analytical skills.
• Stay Industry-Focused: Know how spectroscopy applies to your field of interest, whether pharmaceuticals, materials science, or environmental chemistry.
